1kg 3kg 5kg Copper Scraps Melting Furnace
  • 1kg 3kg 5kg Copper Scraps Melting Furnace
  • 1kg 3kg 5kg Copper Scraps Melting Furnace
  • 1kg 3kg 5kg Copper Scraps Melting Furnace
  • 1kg 3kg 5kg Copper Scraps Melting Furnace
  • 1kg 3kg 5kg Copper Scraps Melting Furnace

1kg 3kg 5kg Copper Scraps Melting Furnace

Lugar de origem China
Marca Lanshuo
Certificação CE ISO EAC
Número do modelo LSW-30
Detalhes do produto
Tipo:
Forno de fusão por indução
Fonte de energia:
Eletricidade
Poder nominal:
30kW
Uso:
fundição de metais
Aplicativo:
Ferro Aço Cobre Ouro Prata Alumínio Fusão
Capacidade de fusão:
1-5kg
Tensão de entrada:
3 fases 380v 50/60 Hz
Frequência de oscilação:
25-40 Khz
Destacar:

small copper melting furnace

,

3kg induction melting furnace

,

5kg copper scraps furnace

Termos de pagamento e envio
Quantidade de ordem mínima
1 conjunto
Preço
USD 1200-2000 / set
Detalhes da embalagem
caixa de madeira compensada, 1250*350*680mm
Tempo de entrega
1-3 dias úteis
Termos de pagamento
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Habilidade da fonte
3000 conjuntos por ano
Descrição do produto

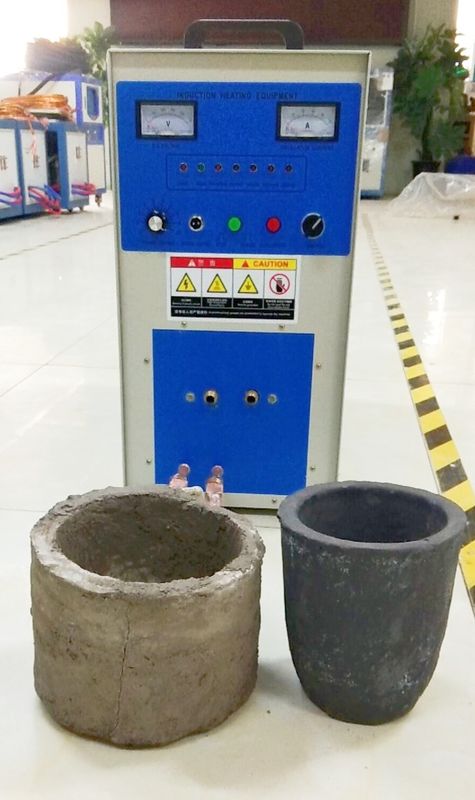

30kw Portable Electric Furnace Induction Melting Furnace

1. Brief Introduction of Induction Melting Furnace:

LSW series induction melting furnace adopts IGBT series and parallel induction heating technology as the core. Alternating current in the coils melts the metals in the crucible and then heats the hot metal to the temperature needed. It is the heat treatment prior to forging, sintering and hot rolling in casting and melting industries.



2. Technical Parameters of LSW-30 Induction Melting Furnace:

Modle LSW-30
Melting capacity 1-5kg copper gold silver iron steel zinc etc.
Rated Power 30KW
Input voltage 3-phase 380v, 50/60hz
Oscillation frequency 25-40Khz
Current(max) 50A
continuous load rate 100%
Cooling water flow(controller) 25L/Min 0.1mpa
Gross weight 60kg
Gross dimension 1250*350*680mm



3. Main Features of induction heating Melting machine:

(1) High efficiency: Induction power, heat transfers to the crucible in a short time.

(2) Energy saving: Compared with traditional melting ways (gas & oil), saving 20%~30% power.

(3) Easy and safe to use: All-round indicator lights controller, much safer and easier for workers to operate.

(4) Stable in use: Our products have been tested at every level, reducing the rate of failure to a great extent.

(5) Environmentally friendly: Electricity-powered, no air pollution, no dust and little noise.

(6) Easy to carry and install: Portable, saving much more room.



1kg 3kg 5kg Copper Scraps Melting Furnace 0

1kg 3kg 5kg Copper Scraps Melting Furnace 1

4. Certificates

1kg 3kg 5kg Copper Scraps Melting Furnace 2

1kg 3kg 5kg Copper Scraps Melting Furnace 3
