45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
  • 45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
  • 45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
  • 45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
  • 45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
  • 45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
  • 45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
  • 45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
  • 45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg

45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg

Lugar de origem Zhengzhou, China
Marca Lanshuo
Certificação CE, EAC
Número do modelo LSZ-45
Detalhes do produto
Tipo:
LSZ-45
Poder:
45kW
Freqüência:
1-15kHz
Componentes principais:
IGBT
Doença:
NOVO
Gerume:
1 ano
Aplicativo:
Lojas de materiais de construção, oficinas de reparos de máquinas, fábrica, ...
Destacar:

45kw IGBT induction melting furnace

,

induction melting furnace for copper scrap

,

50kg capacity induction melting furnace

Termos de pagamento e envio
Quantidade de ordem mínima
1 conjunto
Preço
USD 3,600-4,600
Detalhes da embalagem
Estojo de madeira
Tempo de entrega
5 dias úteis
Termos de pagamento
Western Union, L/C, T/T, PayPal
Habilidade da fonte
3000 set por ano
Descrição do produto
Small Capacity Copper Scrap Melting Furnace IGBT Induction Furnace with Tilting Furnace
Product Overview
This IGBT induction furnace is primarily designed for melting, smelting, and refining precious metals including platinum, palladium, rhodium, gold, silver, copper, and zinc. Its versatile design also accommodates various industrial metal processing applications.
Key Applications
  • Melting of gold, silver, copper, brass and similar metals
  • Melting of steel, stainless steel, aluminum and alloys
  • Heating for shaft-hole matching applications
  • Heating of steel or brass rods and nuts for forging processes
Main Features
  • Rapid, adjustable heating capability
  • Built-in induction stirring for uniform heating and material purity
  • Adjustable output frequency (1-30 KHz) for flexible melting capacities
  • Low-noise operation for reduced environmental impact
  • High temperature capability up to 2500°C
  • Comprehensive automatic protection against overload, overvoltage, water shortage, short circuit, and overheating
  • User-friendly operation with automatic safety shutdowns
Technical Specifications
Parameter Value
Model LSZ-45
Rated Power 45KW
Intel Coil Cable 35mm²
Control Switch 3*120A
Ground Cable 2mm²
Cooling Water Pressure ≥0.2MPA
Cooling Water Flow ≥10L/Min
Working Voltage 3 phase 380V, 50-60HZ
Oscillation Frequency 1-20KHZ
Output Current 80A
Output Voltage 70-550V
Weight 36kg, 21kg
Dimensions 650*350*550mm, 550*350*500mm
Melting Capacity
Material Capacity
Copper 50kg
Gold 50kg
Stainless Steel/Iron 18kg
Aluminium/Aluminium Alloy 18kg
Silver 50kg
Product Images
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg 0
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg 1
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg 2
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg 3

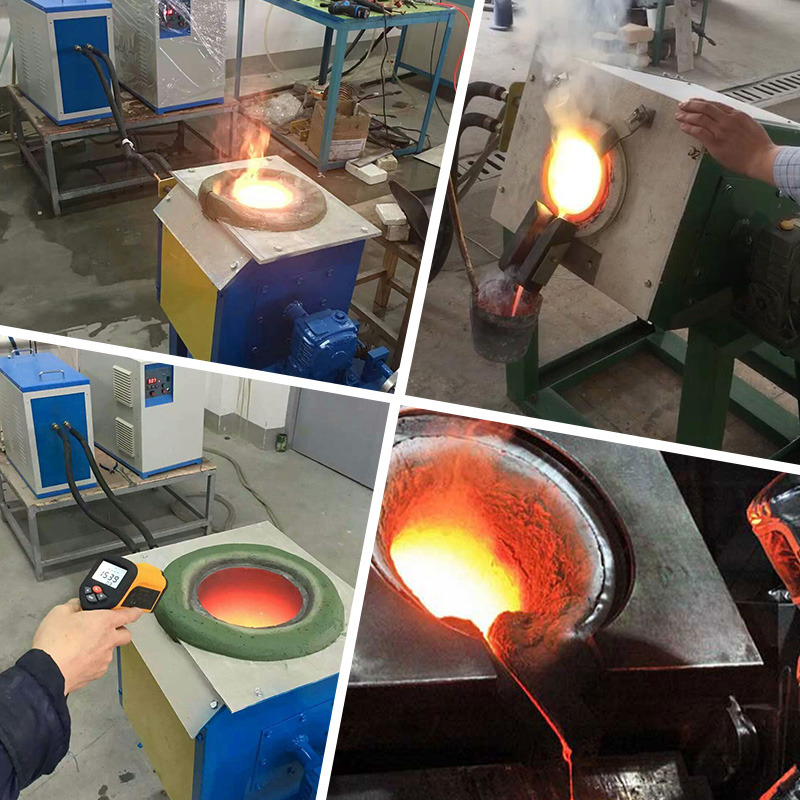

Industrial Applications
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg 4
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg 5
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg 6
Packaging & Shipping
Our standard packaging includes:
  • Machine protected with film layer
  • Secured in paper box packaging
  • Final export wooden case with protective foam
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg 7
45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg 8
Shipping options include:
  • Free delivery to your China-based shipper
  • Direct shipping to any main Chinese ports available
Frequently Asked Questions
Are you the manufacturer?
Yes, our factory is located in Zhengzhou city, Henan province, China.
Do you offer product customization?
Yes, we can customize products of various specifications and different performances according to your needs.
What's the MOQ for trial orders?
No minimum order quantity. We can offer the best suggestions and solutions according to your requirements.
How is your product quality?
All products undergo strict inspection before shipment to ensure guaranteed quality.
What is your typical shipping cycle?
Standard products ship within 7-15 days. Custom electric arc furnace products typically complete within 45 days. Contact us for specific timelines.
Can we choose our own logistics provider?
Yes, you may select your preferred logistics company, or we can arrange shipping for you.
How are your product prices?
We offer high-quality products at competitive prices. Please contact us for specific quotations.

45kw IGBT Induction Melting Furnace LSZ-45 for Copper Scrap 50kg 9
