High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine
  • High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine
  • High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine
  • High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine
  • High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine
  • High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine
High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine

High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine

Lugar de origem China
Marca ZHENGZHOU LANSHUO
Certificação CE
Número do modelo LSW-16
Detalhes do produto
Poder:
16 kW
Corrente da C.C.:
30a
Voltagem CC:
500 V
Tensão de entrada:
Acionamento de energia elétrica
Frequência de aquecimento:
30-80KHZ
Interruptor do ar:
3*50A
Fio terra:
1 mm2
Pressão da água:
0.15-0.2Mpa
Cabo de alimentação:
Fio de 6 mm²Copper
Interruptor de controle de potência de entrada:
3*50A
Fio de aterramento do equipamento:
Fio de cobre macio de 1mm²
Destacar:

16KW induction heating machine

,

metal quenching induction heater

,

small induction welding machine

Termos de pagamento e envio
Quantidade de ordem mínima
1 conjunto
Preço
900USD-1500USD
Detalhes da embalagem
Caso de compensado
Tempo de entrega
3-5 dias úteis
Termos de pagamento
T/T
Descrição do produto
High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine
Technical Specifications
Attribute Value
Power 16kw
DC current 30A
DC voltage 500V
Input voltage Single-phase 220V 50-60HZ
Heating frequency 30-80KHZ
Air switch 3*50A
Ground wire 1mm²
Water pressure 0.15-0.2MPa
Input power cord 6mm² copper wire
Input power control switch 3*50A
Equipment grounding wire 1mm² soft copper wire
Detailed Parameters
Power Installation
  • Input power cord: 6mm² copper wire
  • Input power control switch: 3*50A
  • Equipment grounding wire: 1mm² soft copper wire
Cooling Water Installation
  • Number of water in the control cabinet: water intake: two, water outlet: two
  • Water pipe specification: Inlet water pipe: inner diameter 12mm
  • Water outlet pipe: inner diameter 12mm

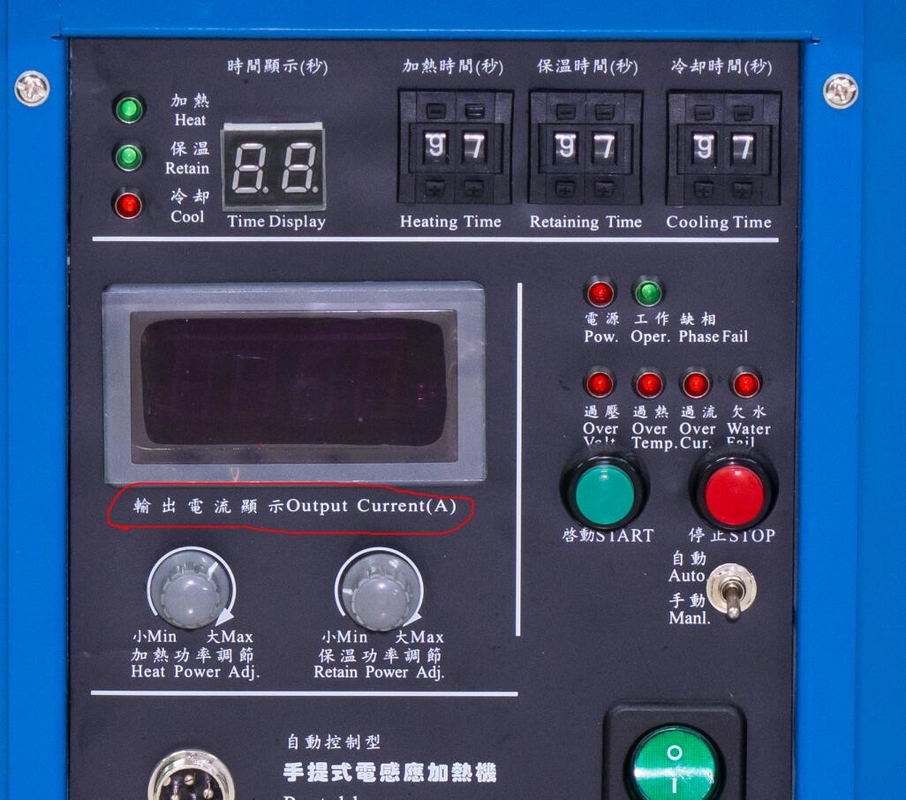

Product Images
High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine 0
High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine 1
High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine 2
High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine 3
High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine 4
Certifications
High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine 5
