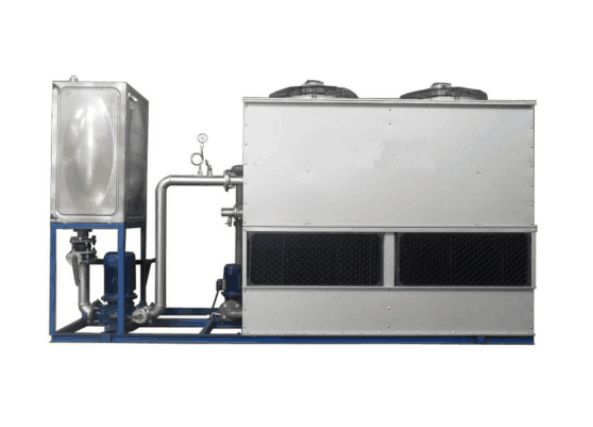

10 Ton Closed Water Cooling Tower
High quality closed cooling tower made in China, designed for cooling various large industrial equipment with energy-efficient performance.
Product Specifications
| Attribute |
Value |
| Cooling type |
Counter flow |
| Warranty |
1 year |
| Power |
Customized |
| Core components |
Pump, motor |
| Material |
Metal |
| Key selling points |
Energy saving |
| Service life |
More than 10 years |
Product Overview
A closed cooling tower (also called an evaporative air cooler, sealed cooling tower, or enclosed cooling tower) houses a tubular heat exchanger within the tower. The cooling effect is achieved through heat exchange between circulating air, spray water outside the tubes, and circulating water within the tubes.
Because the circulating water circulates within the tubes in a closed loop, it ensures water quality is uncontaminated, effectively protecting the efficient operation of the main equipment and extending its service life. When the outside temperature is low, the spray water system can be shut down, saving water.
Technical Specifications
| Voltage |
3 phase 380V, 50/60HZ |
| Cooling capacity |
60000Kcal/h |
| Cooling circulation water flow |
8m³/h |
| Water inlet/outlet pipe diameter |
DN63mm |
| Fan motor power |
0.37kw |
| Spray pump power |
0.75KW |
| Circulation pump power |
1.5KW |
| Tower body guard |
Aluminium zinc plate |
| Condenser material |
304 stainless steel tube Φ19*0.8 |
| Dimensions (L*W*H) |
2300*1000*2250mm |
| Weight |
550kg |
Key Features
- Designed for cooling induction machines
- Compact footprint with direct use capability - no water pool or tank required
- Enclosed soft water circulating system prevents pipe blockage from debris
- Protects electrical components against scale buildup
- Energy-efficient operation with water-saving capabilities
- Durable construction with corrosion-resistant materials
Cooling Tower Structure
Our cooling tower consists of a fan, water outlet pipe, water inlet pipe, spray pump, cooler, sump inlet grille, shell, and air duct. The water outlet pipe, water inlet pipe, and cooler are made of 304 or 316 stainless steel, ensuring all materials in contact with the circulating medium are corrosion-resistant. The shell material is magnesium-aluminum-zinc or 304 stainless steel.
Working Principle
The circulating medium flows in a closed pipeline system. Cooling is achieved through heat exchange with air spray water flowing outside the tubes and enhanced by fan-assisted heat dissipation.
Product Gallery
Frequently Asked Questions
What models and specifications do your cooling towers have? What is their cooling capacity?
We produce cooling towers ranging from 6 to 200 tons, capable of meeting various industrial cooling requirements.
What material is your cooling tower made of? How durable are they?
Our cooling towers feature 304 stainless steel internal components and magnesium-aluminum-zinc outer shells for superior corrosion resistance. We also offer all 304 or 316 stainless steel models for specialized applications.
What kind of technical support is needed for installation and maintenance?
Our cooling towers are pre-installed and shipped ready for operation. Customers only need to connect inlet and outlet pipes. Normal operation requires no maintenance, though antifreeze measures are recommended in cold weather.
How to select the appropriate cooling tower?
Provide these details for a customized solution: application (equipment type), required water flow rate, inlet/outlet temperatures, regional wet bulb temperature, and voltage/frequency requirements.
