Shafts Roller Gear Rods Hardening Quenching Machine Tool
  • Shafts Roller Gear Rods Hardening Quenching Machine Tool
  • Shafts Roller Gear Rods Hardening Quenching Machine Tool
  • Shafts Roller Gear Rods Hardening Quenching Machine Tool
  • Shafts Roller Gear Rods Hardening Quenching Machine Tool
Shafts Roller Gear Rods Hardening Quenching Machine Tool

Shafts Roller Gear Rods Hardening Quenching Machine Tool

Lugar de origem China
Marca Lanshuo
Certificação CE
Número do modelo LCN-1500
Detalhes do produto
Modelo:
LCN-1500
Tipo:
Ferramenta de máquina de amortecimento por indução
Aplicativo:
Eixos Varetas Engrenagens Rolo Têmpera
comprimentos máximos da parte de fixação:
1250 mm
Comprimento máximo das peças de apagamento:
1200 mm
As peças de apagamento de maior diâmetro:
600 mm
As maiores partes totais de apagamento:
150 kg
Velocidade de rotação do eixo:
0-200 rps
Velocidade de movimento das peças de trabalho:
1-60 mm/s
Precisão de posicionamento móvel:
±0.1 milímetro
Destacar:

Shafts Hardening Machine Tool

,

Gear Rods Hardening Machine Tool

,

Roller Hardening Machine Tool

Termos de pagamento e envio
Quantidade de ordem mínima
1 CONJUNTO
Preço
USD 10000-11000 / set
Detalhes da embalagem
Caixa de madeira compensada
Tempo de entrega
7-15 dias úteis após o depósito
Termos de pagamento
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Habilidade da fonte
1000 grupos pelo ano
Descrição do produto

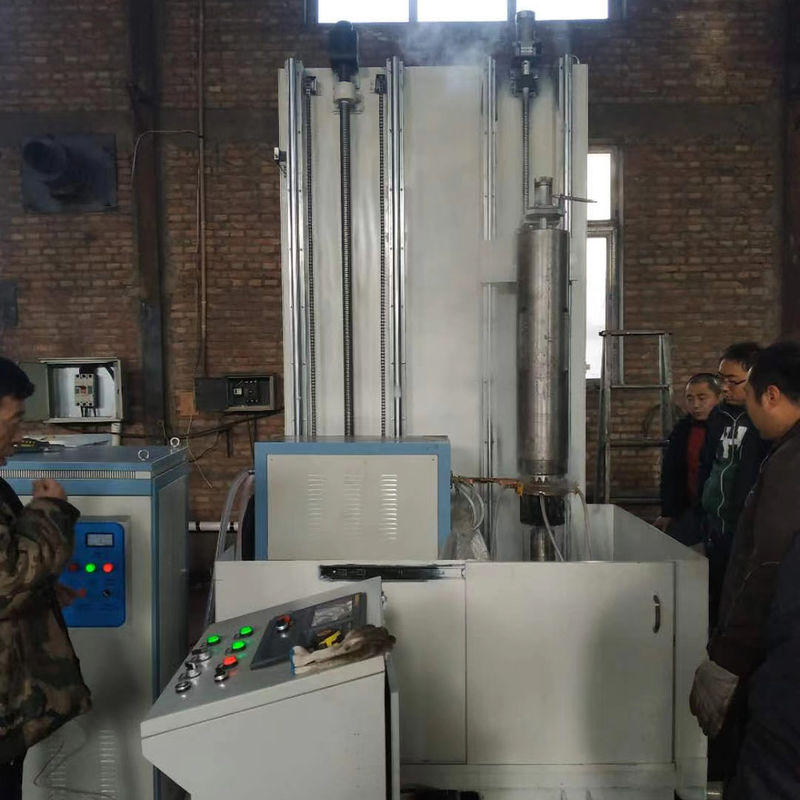

LCN-1500 CNC Induction Quenching Hardening Machine Tool

I. Main configuration of CNC Induction Quenching Machine Tool:
1. CNC system control;
2. Stepper motor drive;
3. Ball screw drive;
4. Cylinder linear guide rail, ball slider sliding;
5. AC variable speed motor drive sprocket chain, the light bar to rotate the workpiece;
6. AC gear motor drive screw, screw the top down;
7. Solenoid valve control water;
8. With a heating device control plug.
II. Main technical parameters of CNC induction quenching machine tools

Model
LSN-2000
LSN-1500
LSN-1000
LSN-600
Max lengths of the clamping parts(mm)
2050
1250
1050
650
Max length of quenching parts(mm)
2000
1200
1000
600
The largest diameter quenching parts(mm)
600
600
600
600
The largest total quenching parts (Kg)
150
150
150
150
Spindle rotation speed (rps)
0-200
0-200
0-200
0-200
Workpieces moving speed ( mm/s)
1-60
1-60
1-60
1-60
Mobile positioning accuracy (mm)
±0.1
±0.1
±0.1
±0.1


III. Advantages of Our CNC Hardening Machine Tool:
1. The induction heating machine adopts IGBT modules, high efficiency, energy saving.
2. Environmentally friendly. Almost no oxide layer, produced no exhaust, no waste-water is generated.
3. Heating fast and uniform.
4. A unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
5. Easy installation, simple operation.
6. Safe and reliable. No high voltage, very safe for operating people.
7. Machine power can be adjust step-less.
8. It has complete self-protect functions: such as many types of alarm lamps: over-current, over-voltage, over hot, water shortage etc, can also control and protect itself.
IV. Applications of Our CNC Hardening Machine Tool:
Shaft: Single heating spray hardening, segmental single heating spray hardening, continuous heating spray hardening, segmental continuous heating spray hardening.
Gear: Overall single heating spray hardening, single tooth single heating spray hardening, single tooth continuous heating spray hardening.
Disc-type workpiece:Overall single heating spray hardening, circumferential surface continuous heating spray hardening.
Shafts Roller Gear Rods Hardening Quenching Machine Tool 0
Shafts Roller Gear Rods Hardening Quenching Machine Tool 1

Shafts Roller Gear Rods Hardening Quenching Machine Tool 2

V. Certificates
Shafts Roller Gear Rods Hardening Quenching Machine Tool 3
Shafts Roller Gear Rods Hardening Quenching Machine Tool 4Shafts Roller Gear Rods Hardening Quenching Machine Tool 5
